規格參數
確認接口類型、端口速率、傳輸距離、單/雙端口、功耗、安裝形態和是否需要配套線纜或光模塊。
康普RUCKUS ICX 7550交換器憑借多達48個千兆連接連接埠和每個連接埠高達90瓦的802.3bt乙太網路供電（PoE）能力，以及永久和快速啓動的PoE支援，為Wi-Fi 6部署及更高需求提供了卓越的性能和可擴展性。該交換器具有市場領先的堆疊密度，每個堆疊最多可容納12台交換器（多達576個千兆、萬兆或光纖連接埠），並將機箱級性能與可堆疊解決方案的「隨增長付費」可擴展性相結合。這款中端市場可堆疊交換器是同類產品中首批提供100 GbE上行鏈結的產品之一，使企業能夠在利用現有光纖基礎設施的同時，大幅提高網路容量。

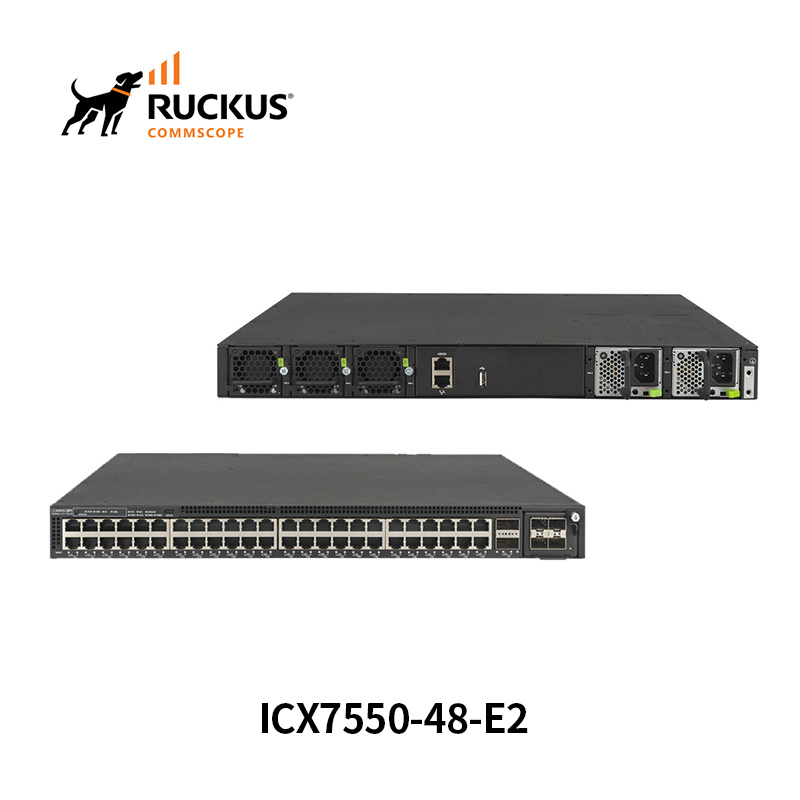

RUCKUS ICX 7550-48-E2 48口10/100/1000 Mbps交換器，2個40Gbps QSFP+雙模上行鏈結/堆疊連接埠，模組化插槽。套裝包含2個400W交流電源適配器
電源供應器和3個風扇，前後氣流設計，連接埠模組需單獨購買。
| RUCKUS ICX 7550-48-E2 | |
| Switching capacity (data rate, full duplex) | 416 Gbps |
| Forwarding capacity (data rate, full duplex) | 309 Mpps |
| 10/100/1000 Mbps RJ45 ports | 48 |
| 100/1000 Mbps/2.5 Gbps RJ45 ports (full duplex only) | - |
| 100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only) | - |
| Fixed ports: 100/1000 Mbps SFP downlinks | - |
| Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | - |
| Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 |
| 40 Gbps QSFP+ uplinks (max) | 4 |
| 40/100 Gbps QSFP28 uplinks (max) | - |
| PoE/PoE+ ports | - |
| Perpetual/Fast boot PoE ports | - |
| 802.3bt (90W) ports | - |
| Base IPv4/v6 L3 routing (Static routing, RIP) | y |
| Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features) | With license |
| Aggregated Stacking Bandwidth | 960 Gbps |
| Stacking density (Max switches in a stack) | 12 |
| Stacking ports (Max ports usable for stacking) | Up to 2 x 40G QSFP+ |
| Max stacking distance (between stacked switches) | 10 Km |
