規格參數
確認接口類型、端口速率、傳輸距離、單/雙端口、功耗、安裝形態和是否需要配套線纜或光模塊。
AI大模型翻譯
康普RUCKUS® ICX 7550交換器提供Wi-Fi 6部署及更高需求所需的卓越性能和可擴展性，配備多達48個千兆連接連接埠，每個連接埠提供90瓦的802.3bt PoE功率，支援永久和快速啓動的PoE功能。它具有市場領先的堆疊密度，每個堆疊最多可容納12個交換器（多達576個千兆、萬兆或光纖連接埠），並將機箱級性能與可堆疊解決方案的「隨增長付費」可擴展性相結合。這款中端市場可堆疊交換器是同類產品中首批提供100 GbE上行鏈結的產品之一，使企業能夠在使用現有光纖基礎設施的同時大幅提高網路容量。

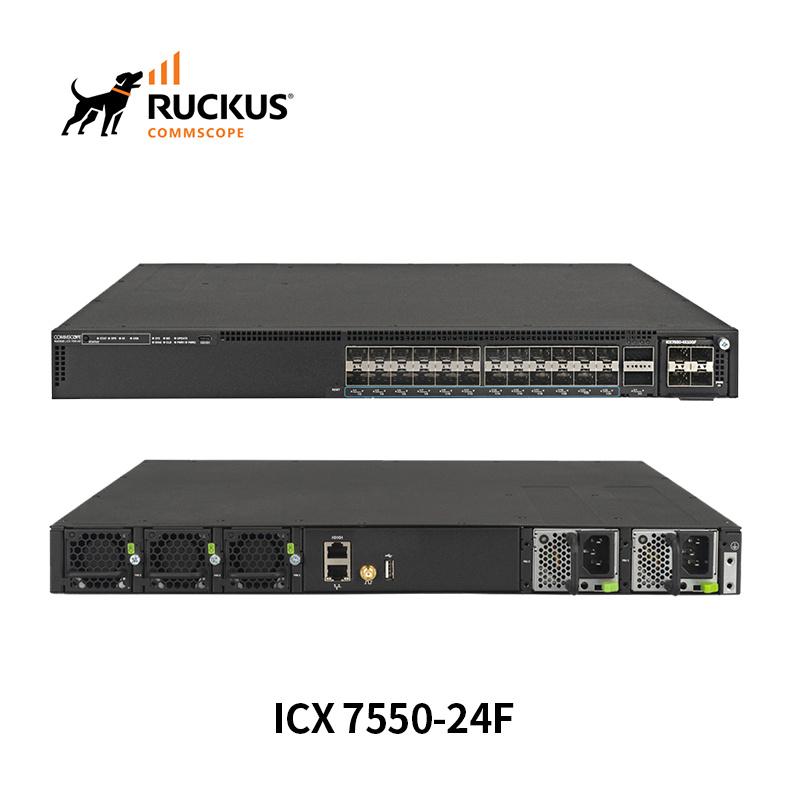

RUCKUS ICX 7550-24F 24連接埠1/10 Gbps SFP+，2個40/100Gbps QSFP+雙模上行鏈結/堆疊連接埠，模組化插槽。電源、風扇和
連接埠模組需單獨購買。
| RUCKUS ICX 7550-24 | |
| Switching capacity (data rate, full duplex) | 1080 Gbps |
| Forwarding capacity (data rate, full duplex) | 803 Mpps |
| 10/100/1000 Mbps RJ45 ports | - |
| 100/1000 Mbps/2.5 Gbps RJ45 ports (full duplex only) | - |
| 100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only) | - |
| Fixed ports: 100/1000 Mbps SFP downlinks | - |
| Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | 24 |
| Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 |
| 40 Gbps QSFP+ uplinks (max) | - |
| 40/100 Gbps QSFP28 uplinks (max) | 4 x 40 or 2 x 100 |
| PoE/PoE+ ports | - |
| Perpetual/Fast boot PoE ports | - |
| 802.3bt (90W) ports | - |
| Base IPv4/v6 L3 routing (Static routing, RIP) | y |
| Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features) | With license |
| Aggregated Stacking Bandwidth | 2.4 Tbps |
| Stacking density (Max switches in a stack) | 12 |
| Stacking ports (Max ports usable for stacking) | Up to 2x 100G QSFP28 |
| Max stacking distance (between stacked switches) | 10 Km |
