規格參數
確認接口類型、端口速率、傳輸距離、單/雙端口、功耗、安裝形態和是否需要配套線纜或光模塊。
RUCKUS ICX 8200通過多達8個25 GbE連接埠用於上行鏈結或堆疊、PoE++（802.3bt）、VXLAN以及高級L2/L3功能，提升了行業標準
並且具有市場領先的堆疊密度，每堆疊多達12個交換器。此外，RUCKUS ICX 8200還結合了企業級功能，
可管理性、性能和可靠性，以及堆疊式解決方案的靈活性、成本效益和「隨增長而付費」的可擴展性。

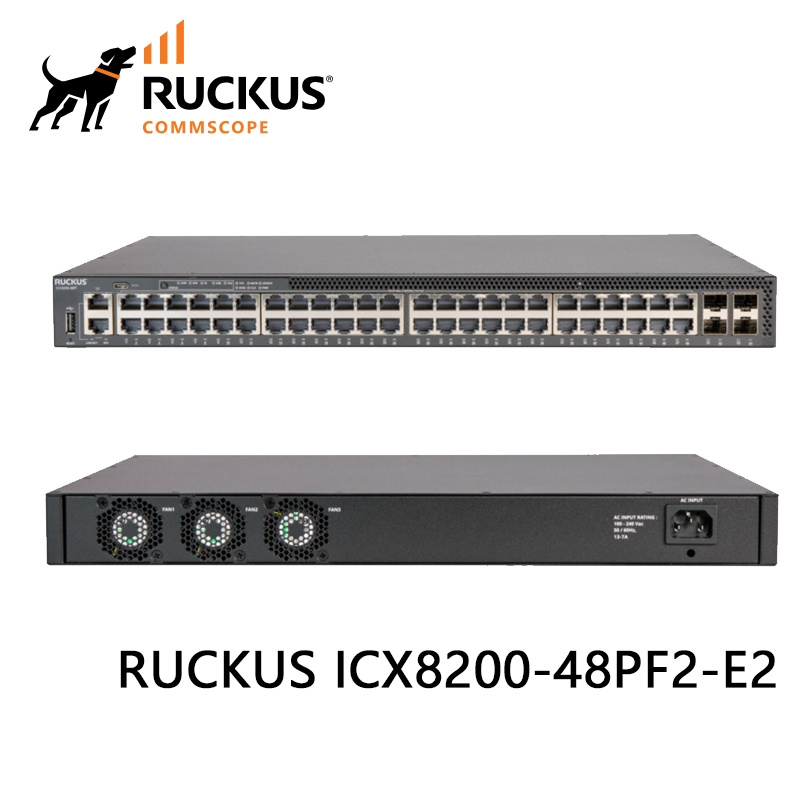

RUCKUS ICX8200-48PF2-E2 交換器，48個10/100/1000 Mbps PoE+連接埠，4個25 GbE SFP28堆疊/上行連接埠，1440 W PoE預算，熱插拔電源
配件和風扇，包括兩個電源和兩個風扇，三年遠程技術支援（TAC）。電源線不包含在內。
| RUCKUS ICX 8200-48PF | |
| Switching capacity (data rate, full duplex) | 296 Gbps |
| Forwarding capacity (data rate, full duplex) | 220 Mpps |
| 10/100/1000 Mbps RJ45 ports | 48 |
| 100/1000 Mbps SFP uplinks | - |
| 1/10 Gbps SFP/SFP+ uplinks | - |
| 1/10/25 Gbps SFP/SFP+/SFP28 uplinks | 4 |
| PoE/PoE+ 802.3at ports | 48 |
| Dual hot-swap power supplies and fan modules | yes |
| Max PoE Class 3 ports (15.4 W per port) | 48 |
| Max PoE+ Class 4 ports (30 W per port) | 48 (2 PSU) |
| Energy Efficient Ethernet (802.3az) | yes |
| Base IPv4/v6 Layer 3 routing (static routing, RIP) | yes |
| Advanced IPv4/v6 Layer 3 (OSPF, VRRP, VRF, GRE, PIM, PBR) | With License |
| Aggregated stacking bandwidth (data rate, full duplex) | 1.2 Tbps |
| Stacking density (maximum switches in a stack) | 12 |
| Stacking ports (maximum ports usable for stacking) | Up to 4×25 GbE SFP28 |
| Maximum stacking distance (distance between stacked switches) | 10 km |
